WHEN DURABILITY MATTERS
1 Year Parts and Labor\10 year, 250,000 Cycle Structural Warranty

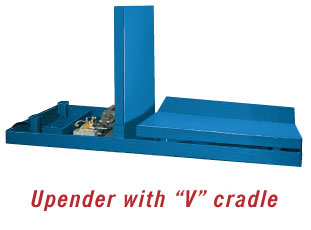

These units are tilters that tilt a full ninety (90) degrees. It is common to equip one platform with a “V” cradle to hold coils or rolls. When this is done, we leave a gap of 6”, or whatever the customer specifies, to accommodate a pallet at the bottom face of the coil or roll. The upenders is then called a roll “palletizer” or “depalletizer.” Lifts have been mounted on one of the platforms, and turntables have been mounted as well. If a turntable is mounted, it usually has to be mounted on slides so that it can be pulled away from the adjacent perpendicular face to turn a square cornered load. Inquire about these hydraulic upender machines today.
SPECIAL FEATURES
- All of our upender machines have hydraulic return lines on the cylinders to preclude oil weepage.
- All of the controllers are Underwriter Laboratory listed assemblies.
- All shafts, axles, and pins are hard chrome plated.
- All bearings are lifetime lubricated.
- Hydraulic upenders are fully primed and finished with baked enamel.
SPECIFICATION TABLE
| Model | Capacity Lbs. | Tilt Degrees | Lowered Height | Platform Widths | Platform Lengths | Tilt Speed | H.P. | Approx. Weight |
|---|---|---|---|---|---|---|---|---|
| UE-290 | 2000 | 90 | 12 | 48 – 60 | 54 – 72 | 58 | 5 | 2000 |
| UE-490 | 4000 | 90 | 12 | 48 – 60 | 54 – 72 | 58 | 5 | 2200 |
| UE-690 | 6000 | 90 | 12 | 48 – 60 | 54 – 72 | 86 | 5 | 2500 |
| UE-890 | 8000 | 90 | 14 | 48 – 60 | 54 – 72 | 91 | 5 | 4000 |
| UE-1090 | 10000 | 90 | 16 | 48 – 60 | 54 – 72 | 124 | 5 | 4300 |
*CLICK ON THE MODEL NUMBER IN THE CHART TO VIEW PRODUCT SHEET
The table represents our most common sizes. The size and configuration possibilities are too numerous to list them all. If you do not see the size you need, please call the factory, and we will gladly quote you for your exact size and feature requirements.

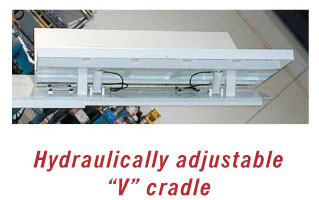

These upenders lend themselves to many special applications and many modifications. The following photos illustrate some of the modifications we have applied to these tilt machines.
Whatever your needs are, we have the expertise to design a suitable unit. Call the number below with any questions you have about our tilt machines and roll upenders.
