2 Year Parts & Labor/10 Year Structural Warranty

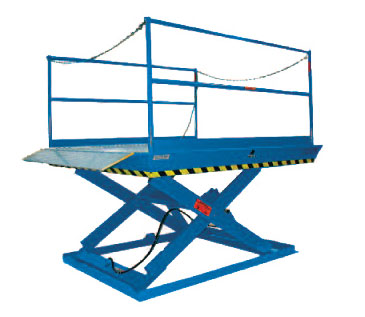

These are by far the most popular size Disappearing Dock lifts sold. They are sized to handle pallet jacks, four-wheel carts or dolly trucks. They are also used for dock to ground access.
Capacity: 5,500 lbs.
Axle Capacity Ends: 2,700 lbs.
Axle Capacity Sides: 2.700 lbs.
Platform Size: 7 x 8 ft.
Lowered Height: 8 in.
5 HP Motor
Approx. 10 FPM
58″ Travel
Shipping Weight: 2,805 lbs.
Axle Capacity Ends: 2,700 lbs.
Axle Capacity Sides: 2.700 lbs.
Platform Size: 7 x 8 ft.
Lowered Height: 8 in.
5 HP Motor
Approx. 10 FPM
58″ Travel
Shipping Weight: 2,805 lbs.
Model# T2-55708SPECIAL FEATURES
- All models are equipped with a hinged bridge with a pull back chain.
- All of the electrical controllers are Underwriters Laboratories approved assemblies.
- Each unit is washed with phosphoric acid, fully primed and then finished with baked enamel.
- All cylinders are machine grade with clear plastic return lines & internal mechanical stops.
- All pressure hoses are double wire braid with JIC fittings.
- Reservoirs are mild steel.
- These units conform to all applicable ANSI codes.
CLICK HERE FOR: DrawingPDFDXFPit DiagramSpecifications Optional Accessories
FEATURE DETAILS & BENEFITS
T2-55708
