5 Year Structural Warranty
1 Year Electrical/Hydraulic

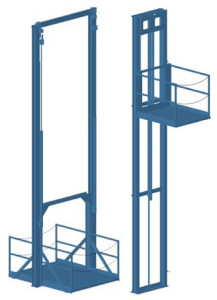

These mezzanine floor lift systems are designed to move goods and materials between multiple floor levels quickly and safely. They may be configured for C, Z, or L loading patterns between floor levels and are available in a wide variety of platform sizes and capacities. No riders are allowed. These mezzanine lift systems may be floor mounted or pit mounted. Hydraulic VRC’s are generally less expensive than mechanical units, but are limited to two (2) level operations. Inquire about our reciprocating vertical conveyors online today.
Enclosures are quoted separately.
For small package lifts – Click here to see our Package Lifts
For Rider Lift applications – Click here to see our White Paper “Rider Mezzanine Lifts”
Enclosures are quoted separately.
For small package lifts – Click here to see our Package Lifts
For Rider Lift applications – Click here to see our White Paper “Rider Mezzanine Lifts”
In addition to our hydraulic lift systems, we also offer Mechanical VRC Lifts.
SPECIAL FEATURES & BENEFITS
- All of the controllers are assembled in our UL listed panel shop
- These conveyor lifts conform to ASME B20.1
- These units also conform to VRC Guidelines – as referenced in ASME B20.1
- Hydraulic mezzanine lifts have a locking system in case of hydraulic failure
- These hydraulic vertical lifts are fully primed and have a baked enamel finish
- The cylinders in hydraulic units are machine grade with return lines
Call 1-800-843-3625 with any questions you have about our reciprocating vertical conveyors.
SPECIFICATION TABLE CANTILEVER HYDRAULIC SLOW SPEED
SPECIFICATION TABLE CANTILEVER HYDRAULIC HIGH SPEED
| Platform | Size (in.) | Low | Overall(in.) Min Platform | Travel | Speed | No. of | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity | Min | Max | Ht(in.) | Height | Width | Depth | Max(ft.) | (FPM) | Cylinders | HP |
| VCHH-1 | 1,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 5 |
| VCHH-2 | 2,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 5 |
| VCHH-3 | 3,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 7.5 |
| VCHH-4 | 4,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 7.5 |
| VCHH-5 | 5,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 7.5 |
| VCHH-6 | 6,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 48 | 62 | 22 | 25 | 2 | 7.5 |
SPECIFICACTION TABLE STRADDLE MAST HYDRAULIC
| Platform | Size (in.) | Low | Overall(in.) Min Platform | Travel | Speed | No. of | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity | Min | Max | Ht(in.) | Height | Width | Depth | Max(ft.) | (FPM) | Cylinders | HP |
| VSH-1 | 1,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 5 |
| VSH-2 | 2,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 5 |
| VSH-3 | 3,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 7.5 |
| VSH-4 | 4,000 | 48 x 48 | 96 X 96 | 2.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 7.5 |
| VSH-5 | 5,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 7.5 |
| VSH-6 | 6,000 | 48 x 48 | 96 X 96 | 3.25 | 105 + travel | 68 | 48 | 22 | 25 | 2 | 7.5 |
