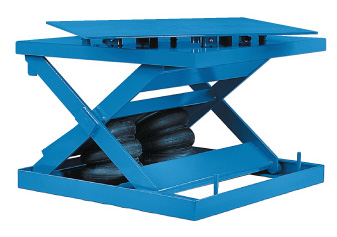

Air Operated Lift & Turn (ATR) Series

10 Year/250,000 Cycle Warranty

These units are designed to operate on shop air with no need for electricity. Each model has been optimized for minimum weight and maximum value.

SPECIAL FEATURES

  • These units are equipped with the patented “Platform Centering Devices”, which doubles or triples lift life
  • These units are fully primed and finished with a baked enamel finish.
  • All units are equipped with sealed ball bearing wheels.
  • All shafts and axles are chrome plated 100,000 psi stressproof steel.
  • All pivot bearings are lifetime lubricated.
  • These units are equipped with a pressure safety relief and a safety orifice speed control to regulate down speed in case of supply line hose rupture.

SPECIFICATION TABLE FOR  AIR OPERATED LIFT AND TURN UNITS

 Model Travel Capacity Platform Minimum Platform Maximum Baseframe Lowered Height Raised Height Turn Ship Weight
ATR-1524 24 1500 36 x 48 48 x 48 36 x 48 10 -3/4 34-3/4 360° 690
ATR-2524 24 2500 48 x 48 60 x 60 48 x 48 10 -3/4 34-3/4 360° 1210
ATR-3524 24 3500 48 x 48 60 x 60 48 x 48 10 -3/4 34-3/4 360° 1220
ATR-5024 24 5000 48 x 48 60 x 60 48 x 48 12 36 360° 1375
ATR-6024 24 6000 48 x 48 60 x 60 48 x 48 13 37 360° 1450

*CLICK ON THE MODEL NUMBER IN THE CHART TO VIEW PRODUCT SHEET
