Series 200 Semi Automatic Stretch Wrappers

This series of stretch wrappers is designed to be used in medium to heavy duty applications using less expensive stretch wrap film. It is a feature rich machine which goes a long way toward automating the wrapping procedure and producing very consistent loads.

GENERAL FEATURES

  • All steel construction.
  • Fork pockets for lifting from either front or back of unit
  • Tilt down mast for secure and easy shipment.
  • Optional approach ramps that can be attached on any of/or all three sides of low profile units.
  • Chain drive turntable and belt drive prestretch carriage lift.
  • 115 Volt single phase AC motors and drives (can be plugged in anywhere.)
  • All solid state sensors for maximum reliability.
  • Top of load sensing with photo eye or over-ride to a manually adjustable proximity sensor.

SAFETY FEATURES

  • Auto stop carriage brake in case the carriage belt breaks.
  • Slack belt detector that stops and reverses carriage descent if the carriage engages an obstruction while lowering.
  • Emergency stop button.

PLC CONTROLLER FEATURES

  • Turntable speed adjustment.
  • Carriage speed adjustment.
  • Jog features for both turntable and carriage.
  • Cycle pause button (allows adjustment of load or addition of load cover.)
  • Wrap count selection for top and bottom of load.
  • Banding feature for extra wraps at any level.
  • Automatic turntable return to home feature.

SAFETY FEATURES

  • Non-powered mechanical prestretch ratio of 88%.

FEATURE DETAILS

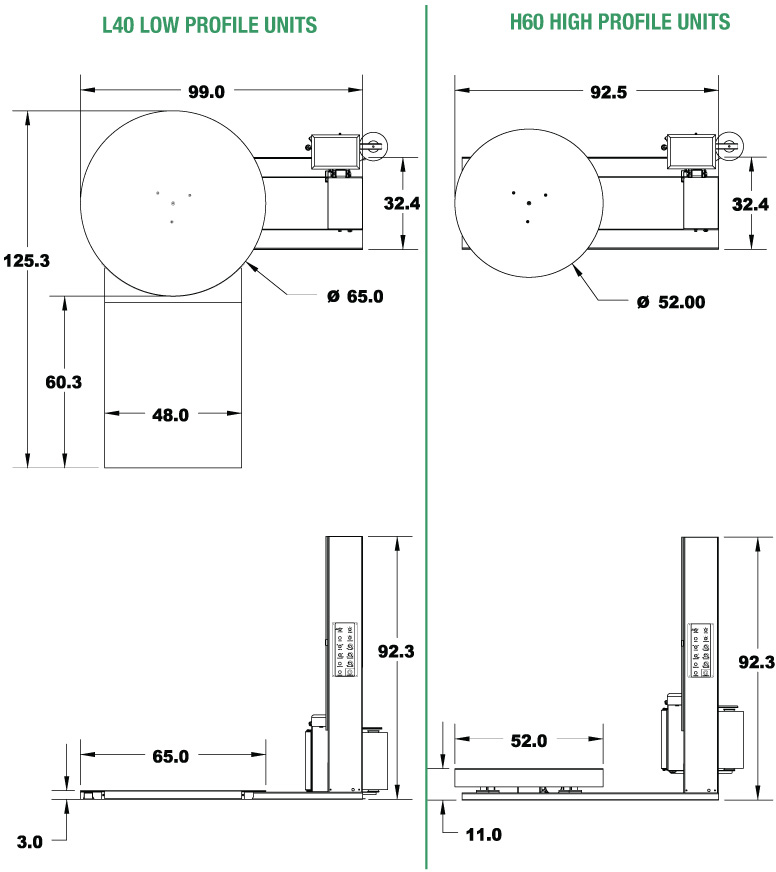

SPECIFICATION TABLE MODEL 200

 Model Capacity Load Size Table Height Table Diameter Max RPM Standar Voltage Ship Weight

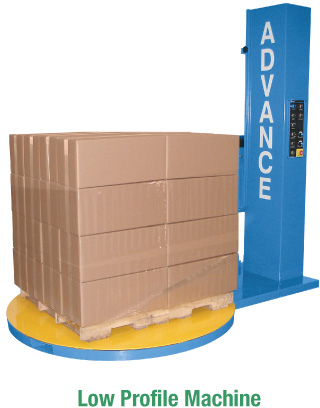

SW150L40 4000 52 x 52 3 65 14 115/60/1 1090

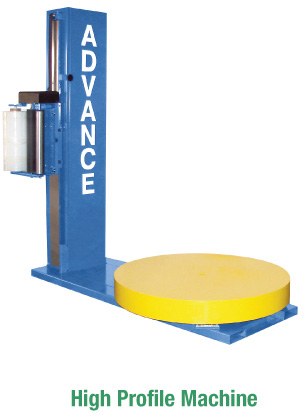

SW150H60 6000 52 x 52 11 52 14 115/60/1 1155

* OPTIONAL 48” X 70” APPROACH RAMP FOR LOW PROFILE UNITS WEIGHTS 250 LBS..
