TL-415 & TL-420 Recessed Truck Levelers

These truck levelers have the cylinders mounted completely out of the way beneath the platform. The travel on these units is typically divided with 18″up travel and 18″ down travel, but the pit profile can be changed to provide other travel combinations.

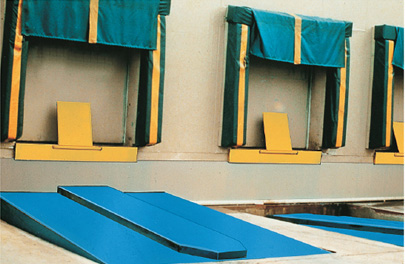

Recessed-Truck-TL-415 & TL-420_Levelers

SPECIFICATION TABLE FOR RECESSED TRUCK LEVELERS:

Model Capacity Platform Size Travel Horse Power Speed Weight Overall Width Overall Length
TL-415 60000 10′ x 15′ 36″ 5 3 5800 10′ 2″ 15′ 8-3/4″
TL-420 60000 10′ x 20′ 36″ 5 3 7300 10′ 2″ 20′ 8-3/4″

TL-415&TL-420_Diagram

INSTALLATION REQUIREMENTS:

1. A crane that can reach the center of the platform with a capacity of 3,000 lbs. for a TL-415 or 3,500 lbs. for a TL-420 will be required.
2. Typically it takes two men and two days to complete an installation.
3. All welding is in the flat position.

NOTE:

1. Steel faced dock bumpers are preferred because of the vertical movement of trucks against the bumpers.
2. “Edge of dock” devices are often used to span the gap between the dock and truck bed.
3. A 24″ X 24″ opening is available to accommodate truck restraints. Consult the factory if your requirements exceed those dimensions.
